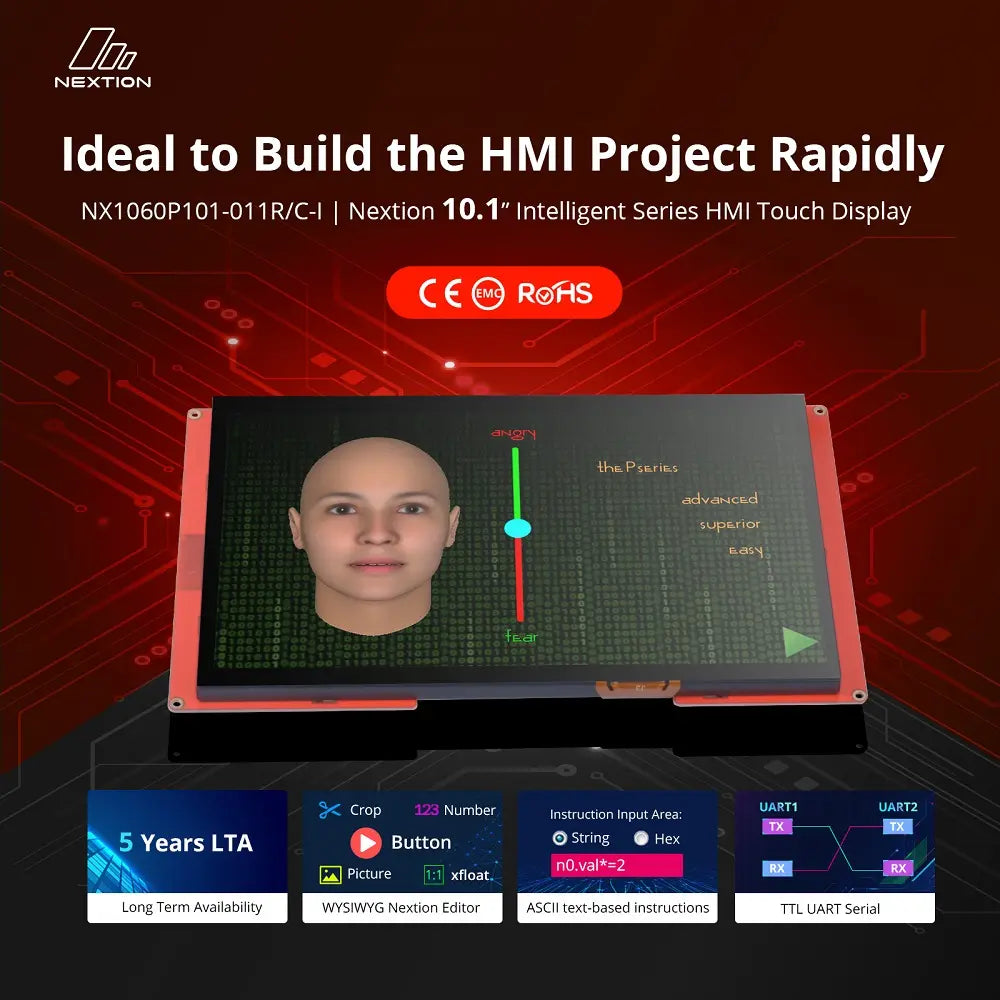

Nextion NX1060P101-011C-I 10.1" Intelligent Series HMI Touch Display - Capacitive TFT LCD 1024x600, UART Interface, for Industrial Control, Kiosks, Raspberry Pi, DIY Projects

【Shared Premium Features】

🖥️ High-Resolution Display - Crisp 1024×600 TFT LCD
🔌 UART Interface - Simple serial communication
🛠️ Industrial-Grade - Reliable performance in harsh environments

【Key Applications】

🏭 Factory automation control panels
🏢 Interactive kiosks and POS systems
🤖 Robotics and embedded systems
🔌 IoT and smart home hubs

【Why Choose Nextion?】

✨ Intelligent Series - Advanced features at competitive price
📦 Without Enclosure - Flexible for custom installations
🌐 Global Support - CE/FCC/RoHS certified

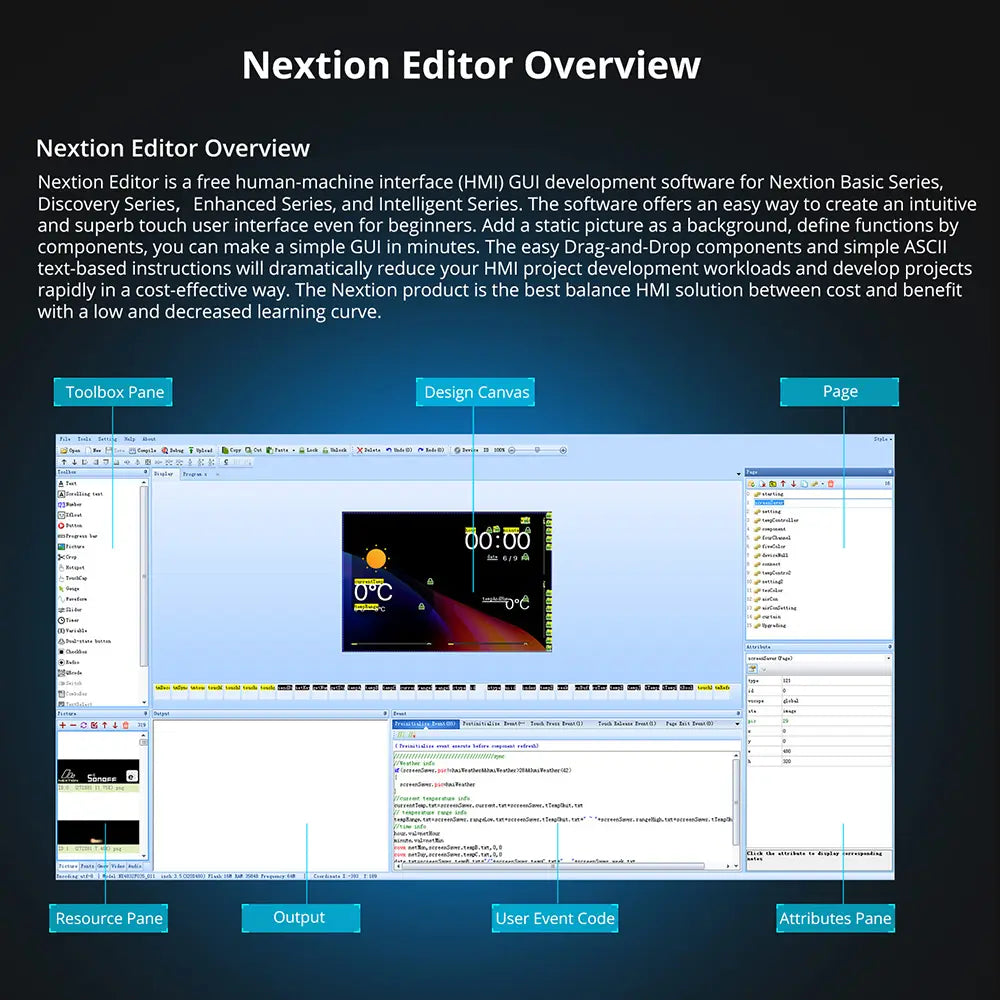

Nextion Editor Overview Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Versatile Character Encoding With several character encoding, you are able to create the HMI project in your language characters and strings. Fonts and Text Styling The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”25+Amazing WYSIWYG Components Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way Component Attribute Setting The component attribute setting gives you the options to design all the aspects of the component that you need.Free Simulator Debug Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions. Nextion Operational Commands The operational commands allow users to program the HMI interactions by coding in Events windowsText-based Instruction Set Simple ASCll text based instructions will dramatically reduce your HMI project development workloads Support Simple Assignment Operators To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions. The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc. You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

Software Features

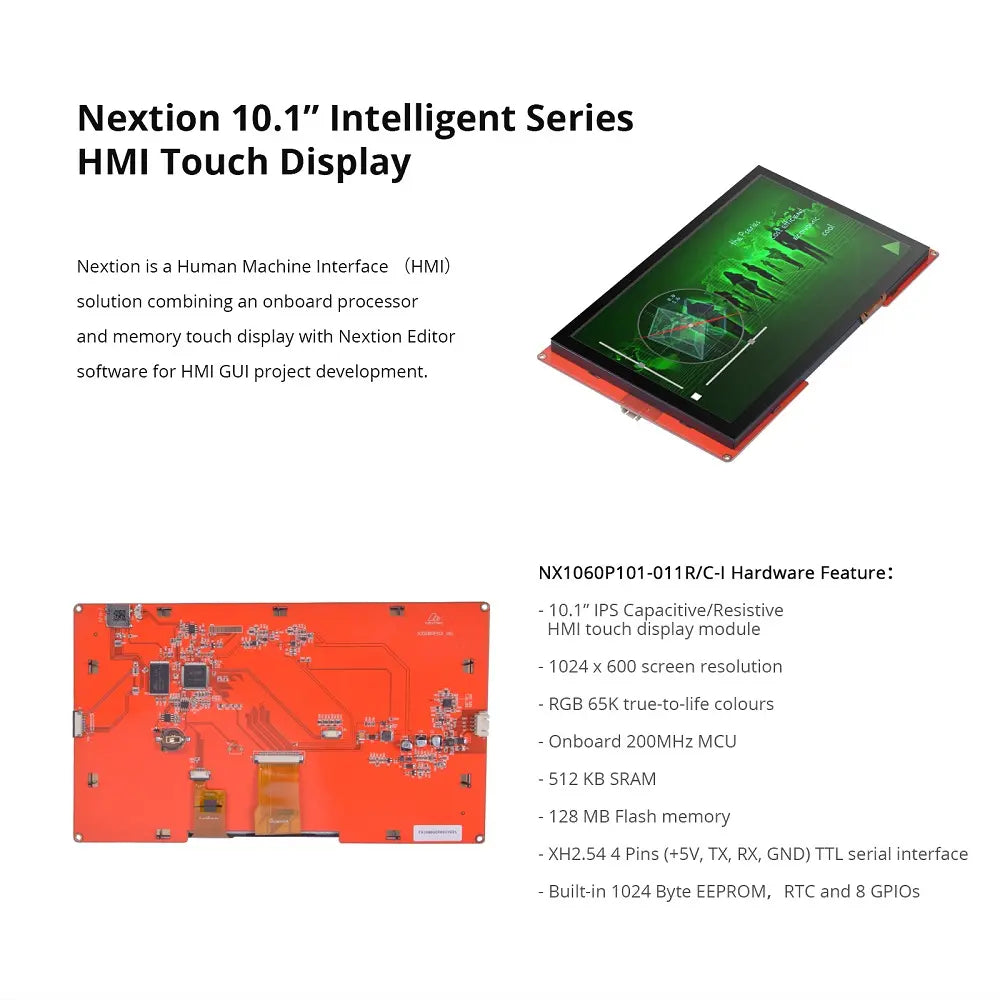

Hardware Features

• – NX1060P101-011C-I(10.1” IPS RGB 65K capacitive touchscreen), NX1060P101-011R-I(10.1” IPS RGB 65K resistive touchscreen)
• – Onboard MCU 200MHz and up to 128MB for HMI project
• – Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
• – 4 pins (+5V, TX, RX, GND) TTL serial interface
• – 300 nit Brightness with 1% interval adjustment
• – Audio interface
• – CE and RoHS Compliant
• – Model: NX1060P101-011C-I(HMI Capacitive Touch Display) and NX1060P101-011R-I(HMI Resistive Touch Display)

  In The Box

  • – NX1060P101-011C-I HMI Display*1  or NX1060P101-011R-I HMI Display*1
  • – XH2.54 4P Wire*1
  • – Power Supply Test Board*1

  NX1060P101-011C-I  Certification and Documents

  • – Datasheet
  • – Dimension
  • – Instruction Set
  • – Editor Guide
  • – LTA Announcement
  • – CE Certification
  • – ROHS Certification

  NX1060P101-011R-I  Certification and Documents

  • – Datasheet
  • – Dimension
  • – Instruction Set
  • – Editor Guide
  • – LTA Announcement
  • – CE Certification
  • – ROHS Certification

  Nextion Technical Support

  • – Nextion Community Forum
  • – Enhanced Support
