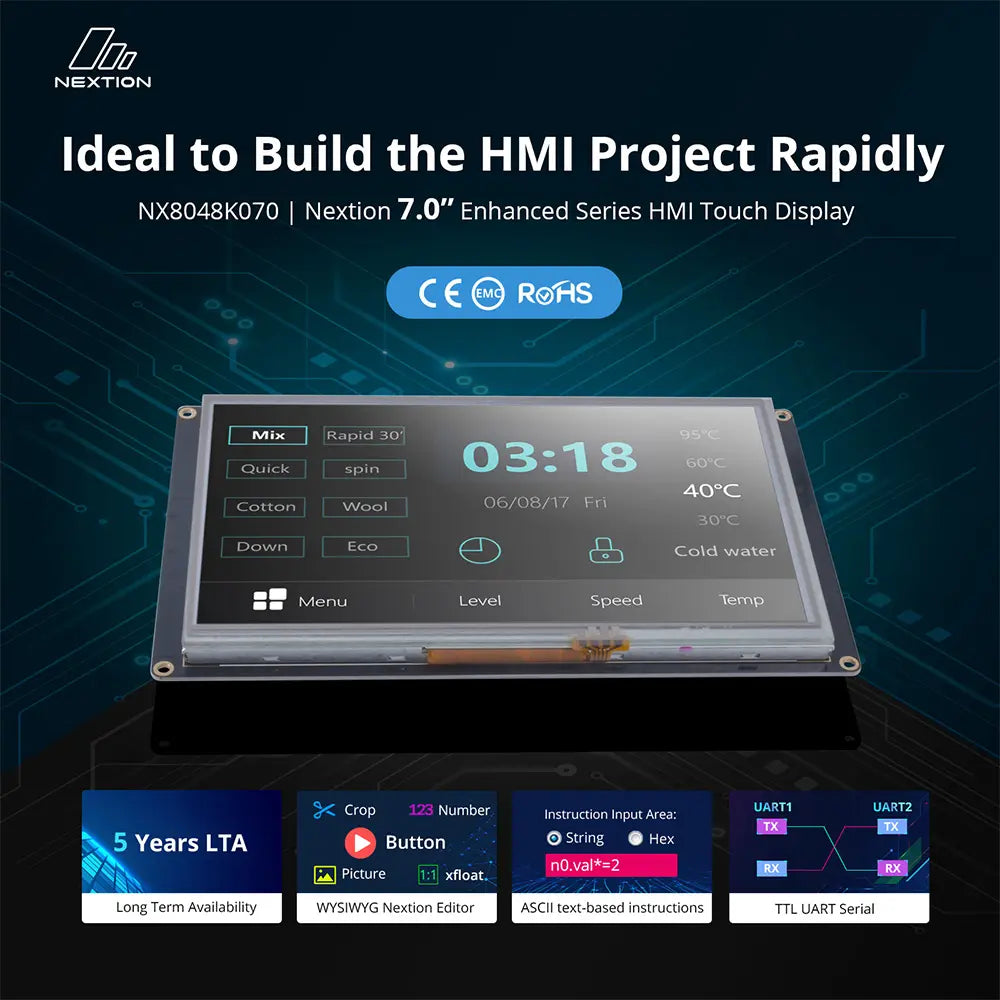

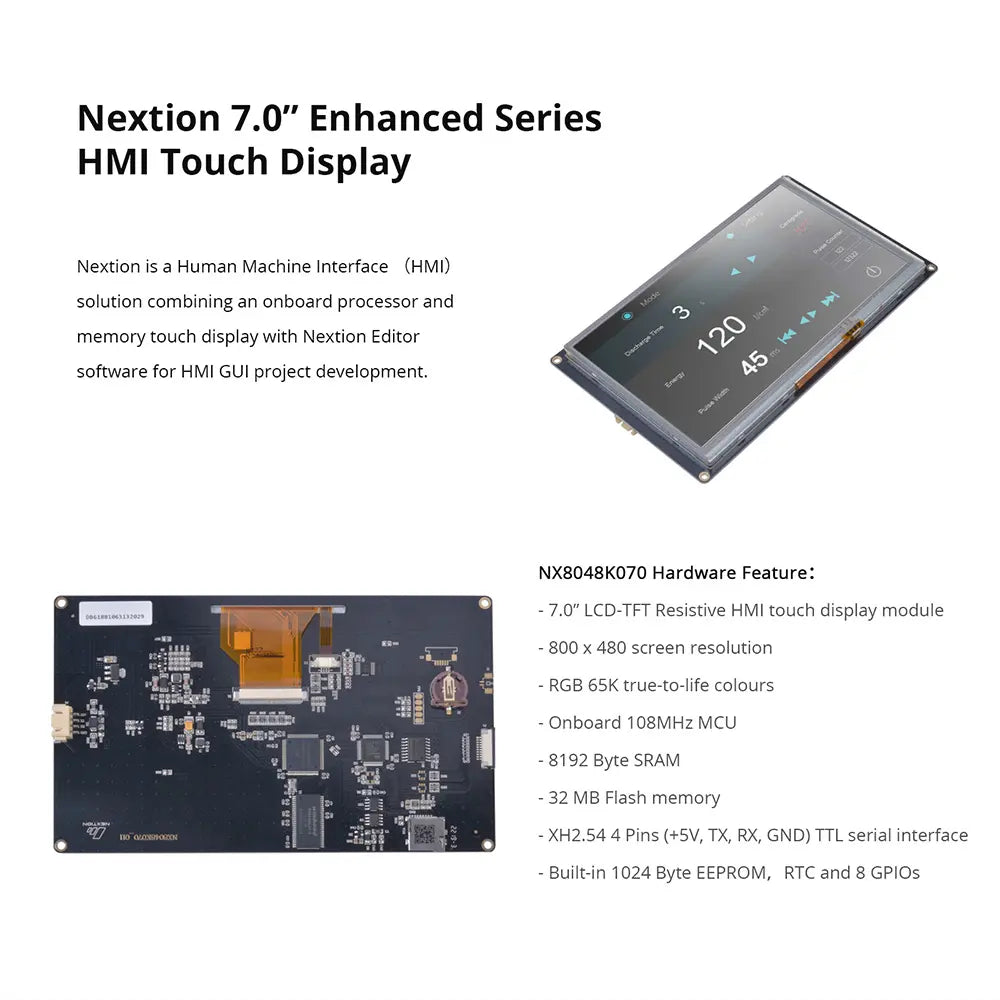

Nextion NX8048K070 – 7″ TFT HMI Touch Display (800×480, UART / Serial)

Power Features First - Highlights "Enhanced" advantages upfront (RTC/GPIO)

Full Display Specs - Includes "800×480 (65K Color)" for visual clarity

Expanded Storage - Adds "SD Card Slot (32GB FAT32)" as key differentiator

Technical Credibility - Retains STM32 MCU and UART interface

Clear Compatibility - Lists "Industrial/Arduino/RPi" for all user bases

Physical State - Maintains "(No Enclosure)" to prevent returns

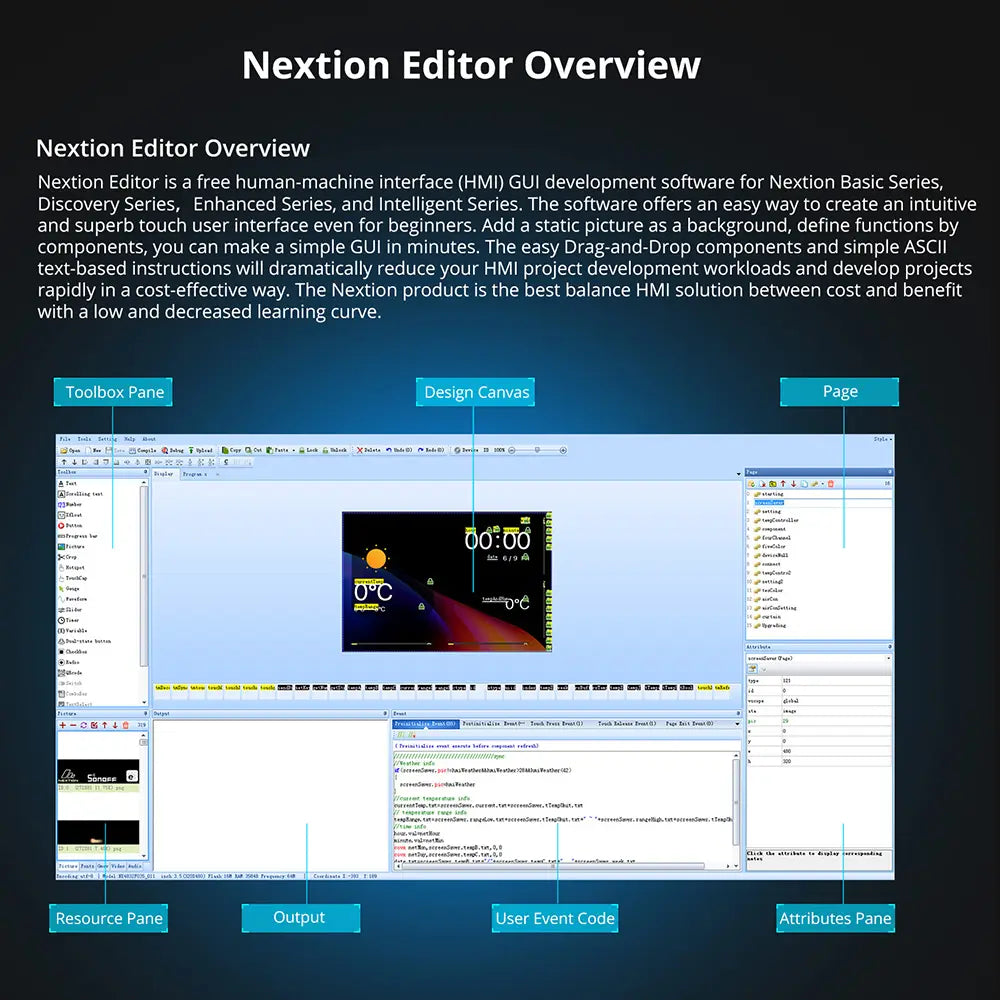

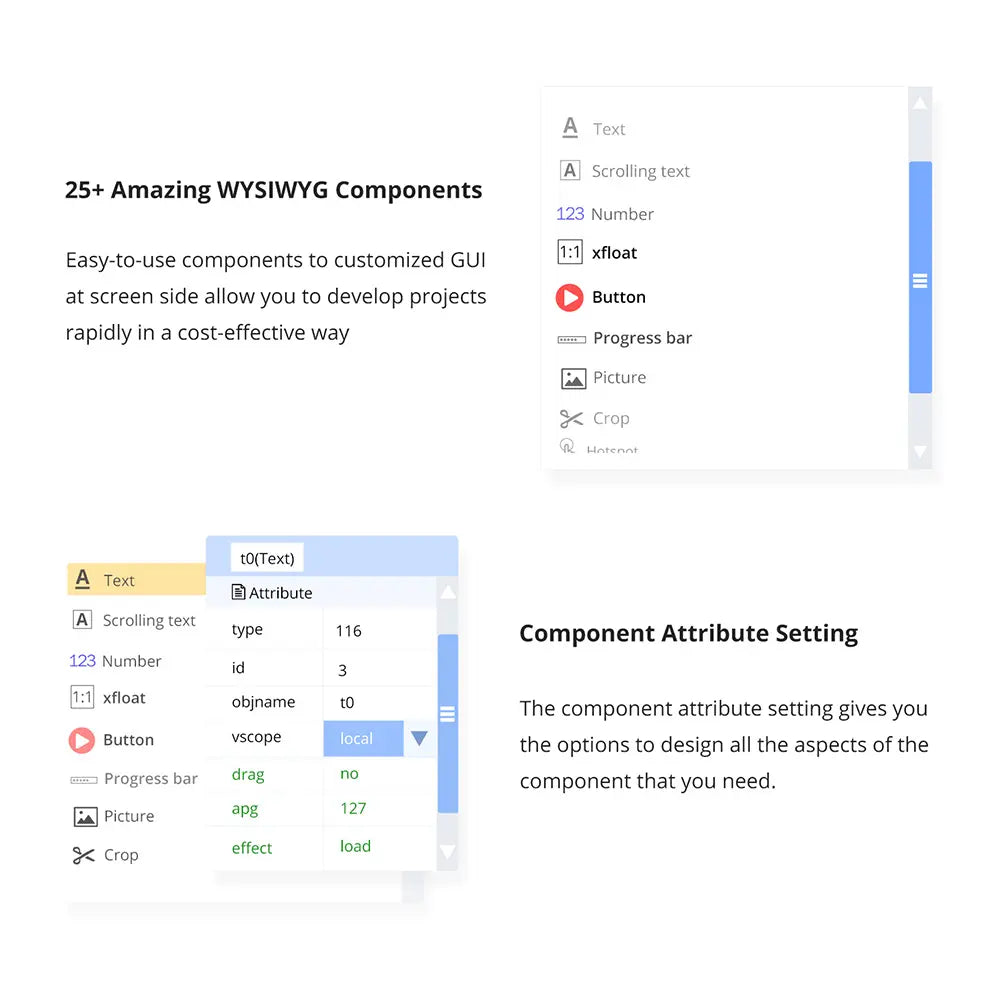

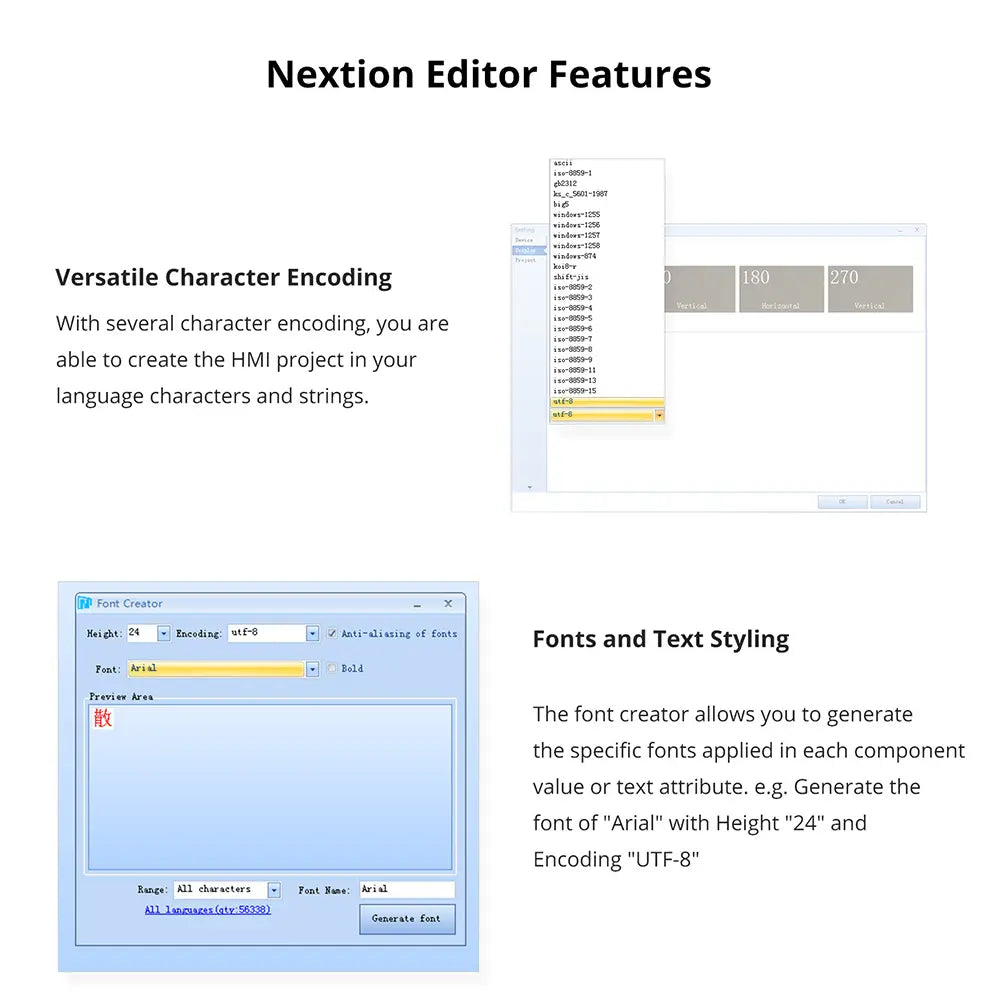

• Nextion Editor Overview Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Nextion Editor Features Versatile Character Encoding With several character encoding, you are able to create the HMI project in your language characters and strings. Fonts and Text Styling The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”25+Amazing WYSIWYG Components Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way Component Attribute Setting The component attribute setting gives you the options to design all the aspects of the component that you need.Free Simulator Debug Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions. Nextion Operational Commands The operational commands allow users to program the HMI interactions by coding in Events windowsText-based Instruction Set Simple ASCll text based instructions will dramatically reduce your HMI project development workloads Support Simple Assignment Operators To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

  Package includes

  1× 7.0″ Nextion Enhanced HMI Display 1× power supply test board 1× 4-pin grove cable

  Documents

  Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
