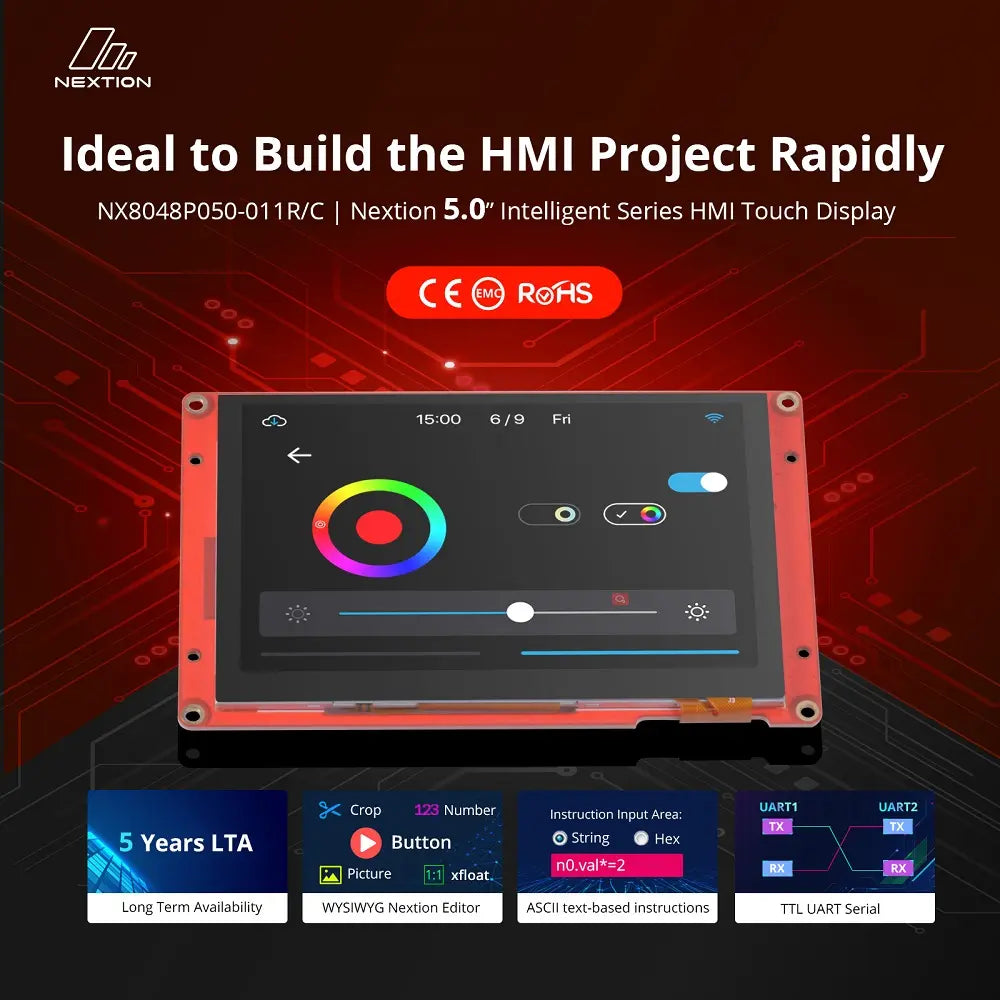

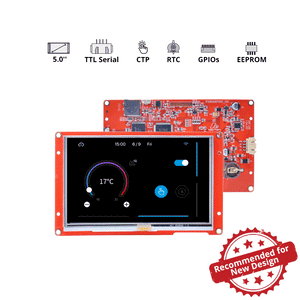

Nextion NX8048P050-011C 5" Intelligent HMI Touch Display - 800x480 Capacitive Touchscreen TFT LCD Panel - for Arduino, Raspberry Pi, ESP32, Industrial Control (5-inch IPS Model)

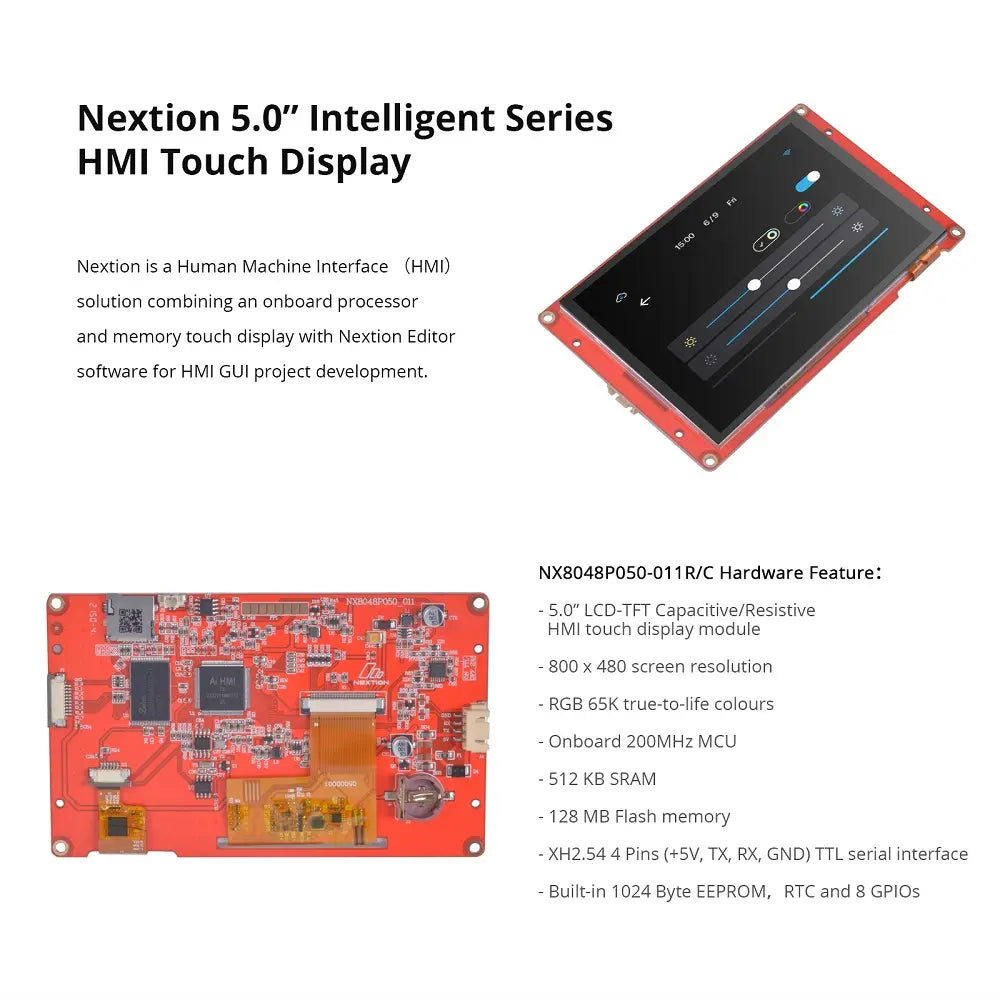

🖥️ 5.0" TFT LCD Panel with crisp 800×480 resolution
🌈 65K RGB Color Depth for true-to-life visual representation
☀️ 300-nit Brightness ensures visibility in various lighting conditions
🔳 Capacitive Touch Panel (alternative resistive options available)

Powerful Processing

⚡ 200MHz Onboard MCU for smooth operation
💾 Ample Memory:

• 512KB SRAM for fast data processing

• 128MB Flash for extensive storage

• 1024 Byte EEPROM for parameter retention
  ⏰ Built-in RTC for time-based operations

Connectivity & Expansion

🔌 XH2.54 4-Pin TTL Serial Interface (+5V, TX, RX, GND)
🎧 1.25T-2-2A Audio Port for external speaker connection
🔄 8 Digital GPIO Pins:

• IO0-IO7 support input/output & component binding

• IO6-IO7 feature PWM capability

Compatibility & Use Cases

🤖 Perfect for Arduino, Raspberry Pi, ESP32 projects
🏭 Ideal for industrial control systems, IoT devices, and automation
📦 Bare Module (enclosure not included) - SKU: 6920075776546

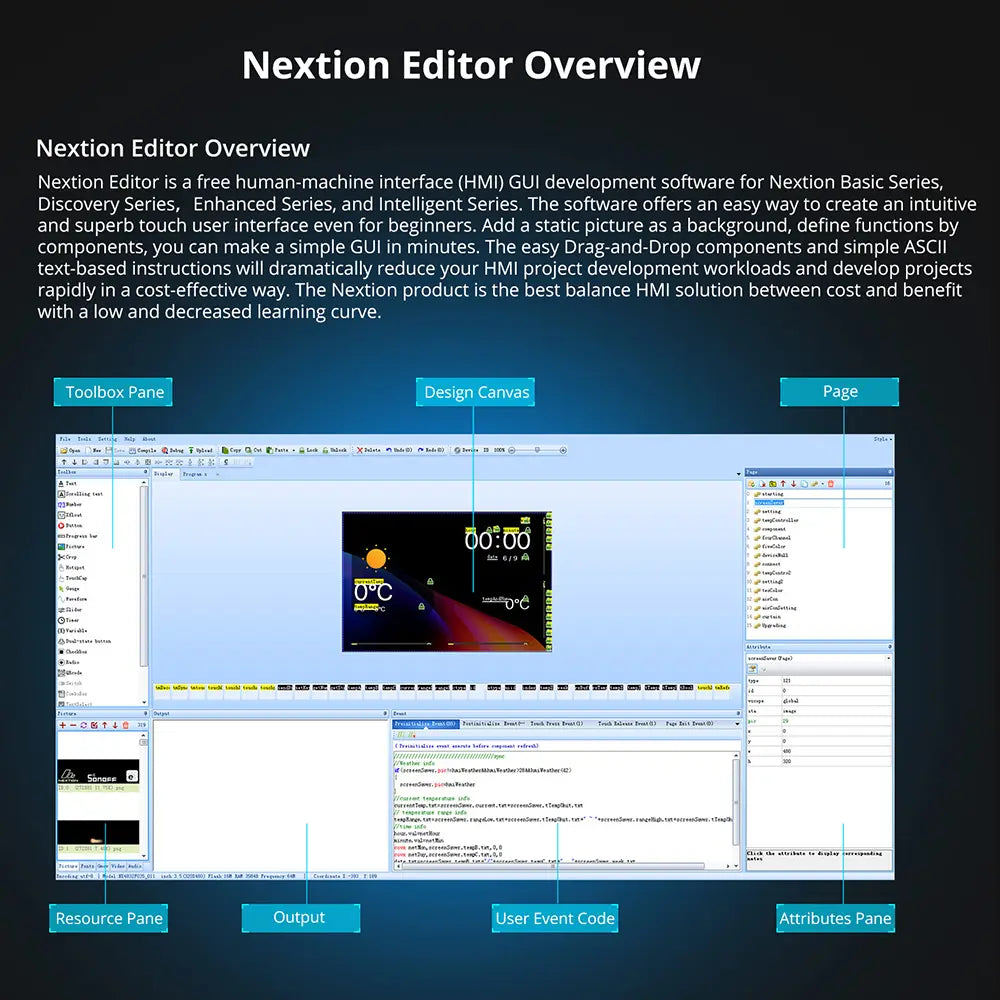

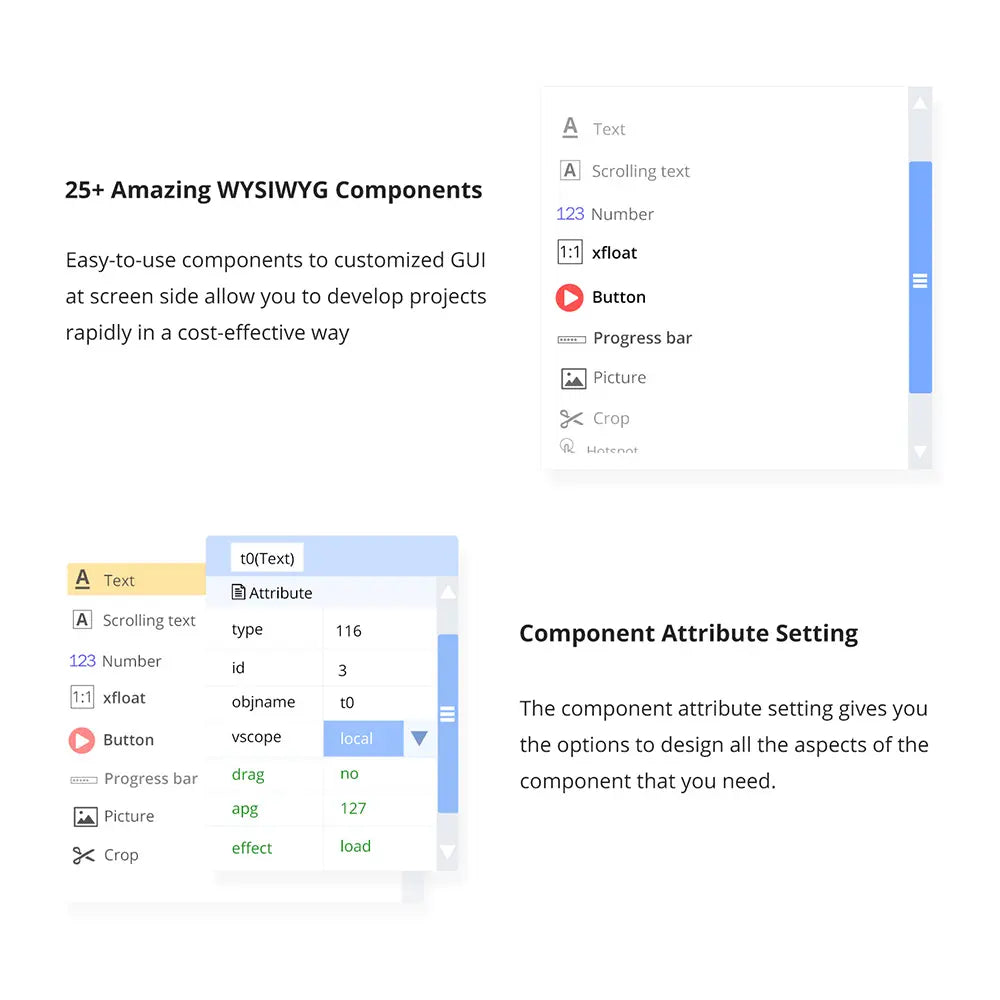

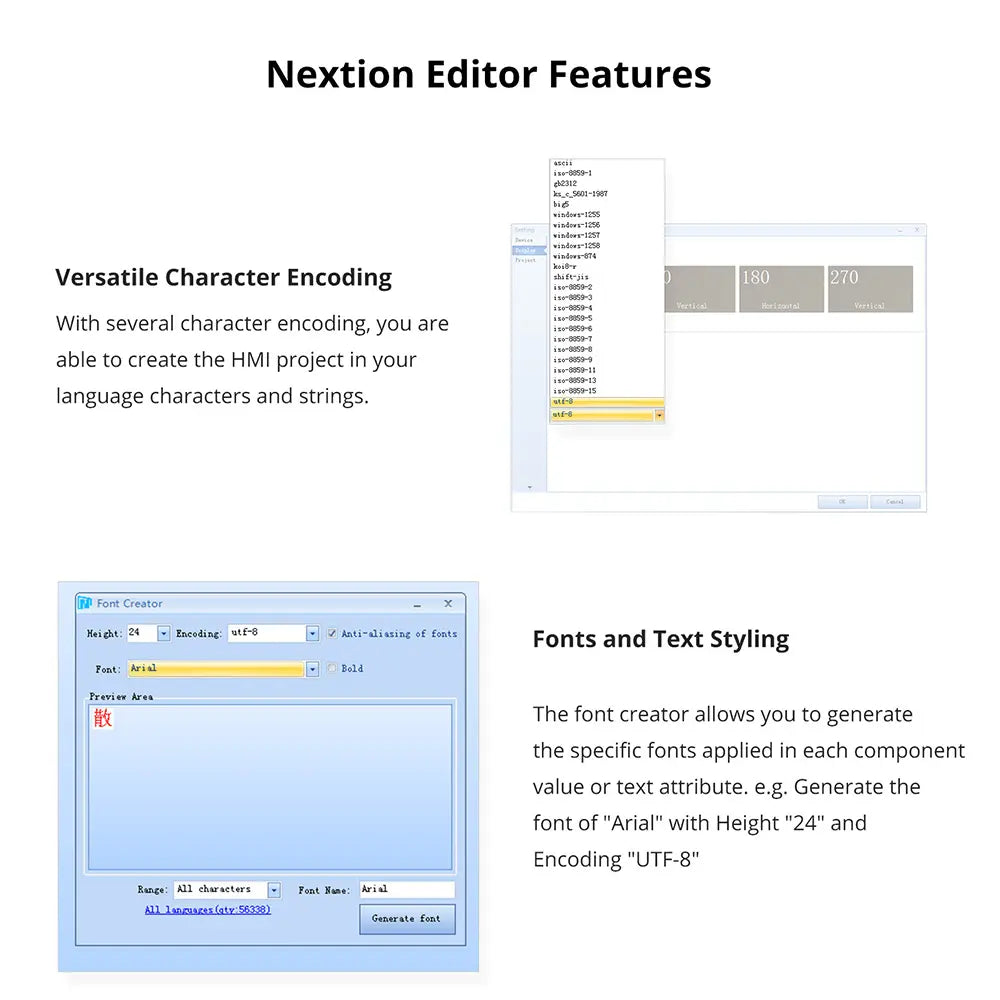

Nextion Editor Overview Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Versatile Character Encoding With several character encoding, you are able to create the HMI project in your language characters and strings. Fonts and Text Styling The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”25+Amazing WYSIWYG Components Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way Component Attribute Setting The component attribute setting gives you the options to design all the aspects of the component that you need.Free Simulator Debug Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions. Nextion Operational Commands The operational commands allow users to program the HMI interactions by coding in Events windowsText-based Instruction Set Simple ASCll text based instructions will dramatically reduce your HMI project development workloads Support Simple Assignment Operators To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
