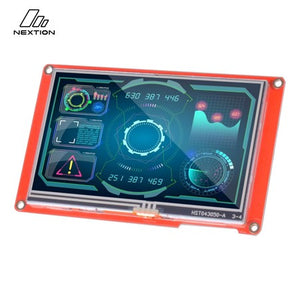

Nextion NX8048P050-011R 5.0” HMI Touch Screen Display, Intelligent Series Resistive Touch Panel, 800x480 Resolution, TFT LCD, for DIY Projects & Embedded Systems (Without Enclosure)

✔ 5.0” TFT LCD Display – Crisp 800×480 resolution with 65K RGB true-color for vibrant visuals
✔ Resistive Touch Panel – Reliable input response (compatible with stylus/gloves)
✔ High Brightness (300 nits) – Clear visibility even in well-lit environments
✔ Powerful Onboard MCU – 200MHz processor, 512KB SRAM, 128MB Flash, and 1024B EEPROM for smooth operation
✔ Versatile Connectivity – XH2.54 4-pin TTL serial (5V, TX, RX, GND) + 1.25T-2-2A audio port for external speakers
✔ Extended GPIO Pins – 8 digital I/O (IO0-IO7) with PWM support (IO6-IO7) for custom hardware control
✔ Built-in RTC (Real-Time Clock) – Timekeeping functionality for automation & logging
✔ No Enclosure (Bare Module) – Ideal for DIY projects, embedded systems, industrial HMIs, and smart devices

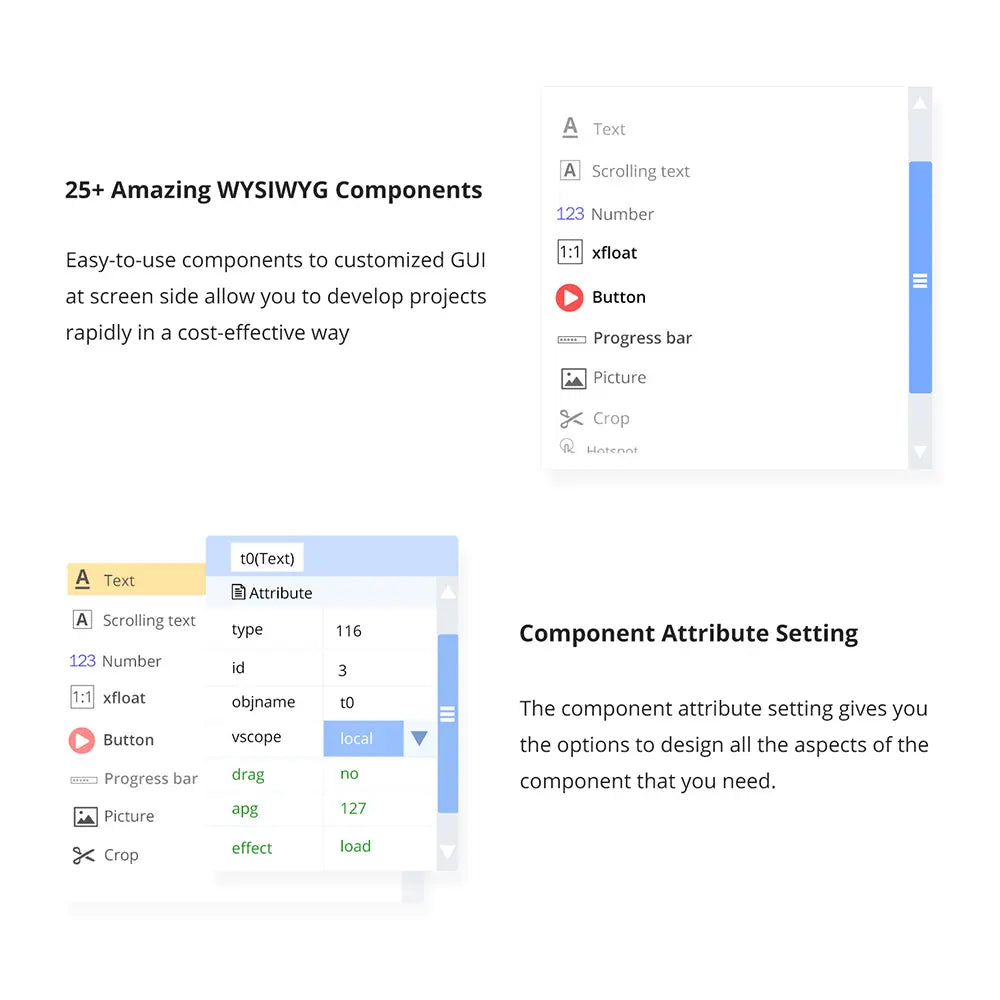

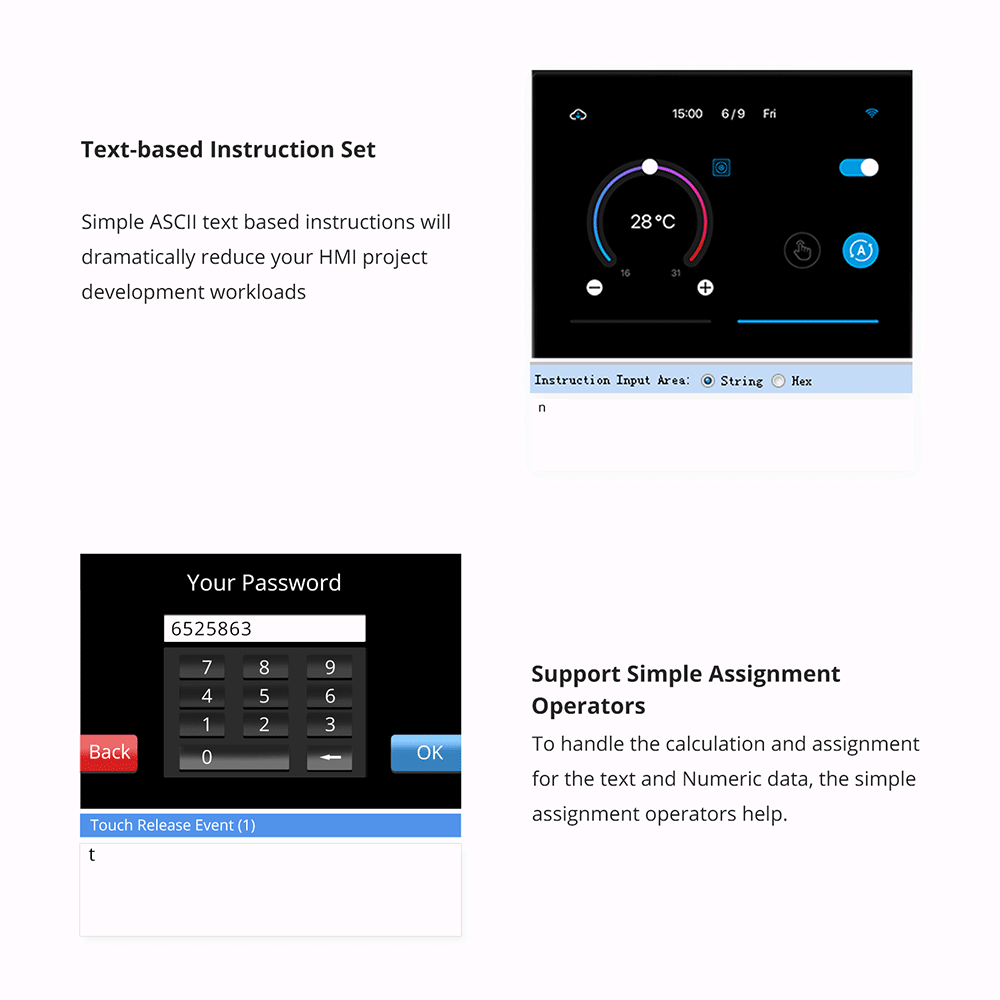

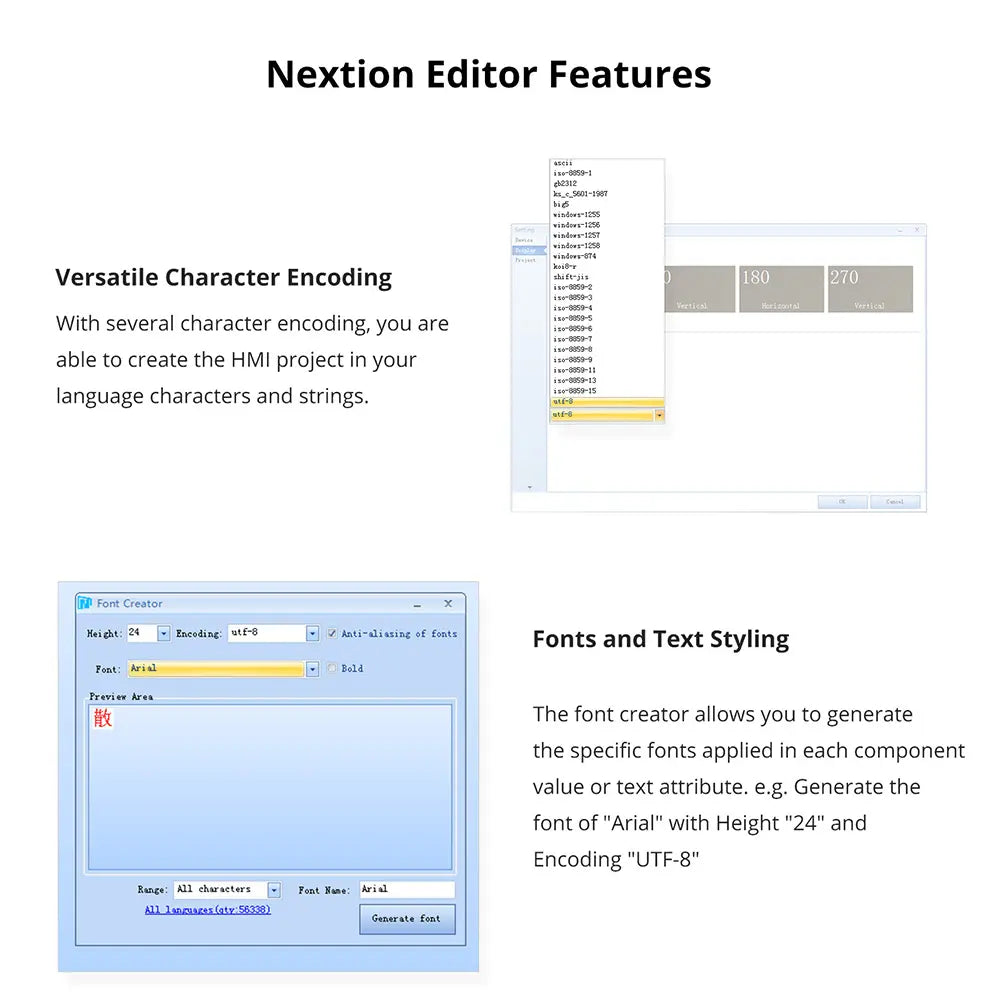

Nextion Editor Overview Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Versatile Character Encoding With several character encoding, you are able to create the HMI project in your language characters and strings. Fonts and Text Styling The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”25+Amazing WYSIWYG Components Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way Component Attribute Setting The component attribute setting gives you the options to design all the aspects of the component that you need.Free Simulator Debug Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions. Nextion Operational Commands The operational commands allow users to program the HMI interactions by coding in Events windowsText-based Instruction Set Simple ASCll text based instructions will dramatically reduce your HMI project development workloads Support Simple Assignment Operators To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
