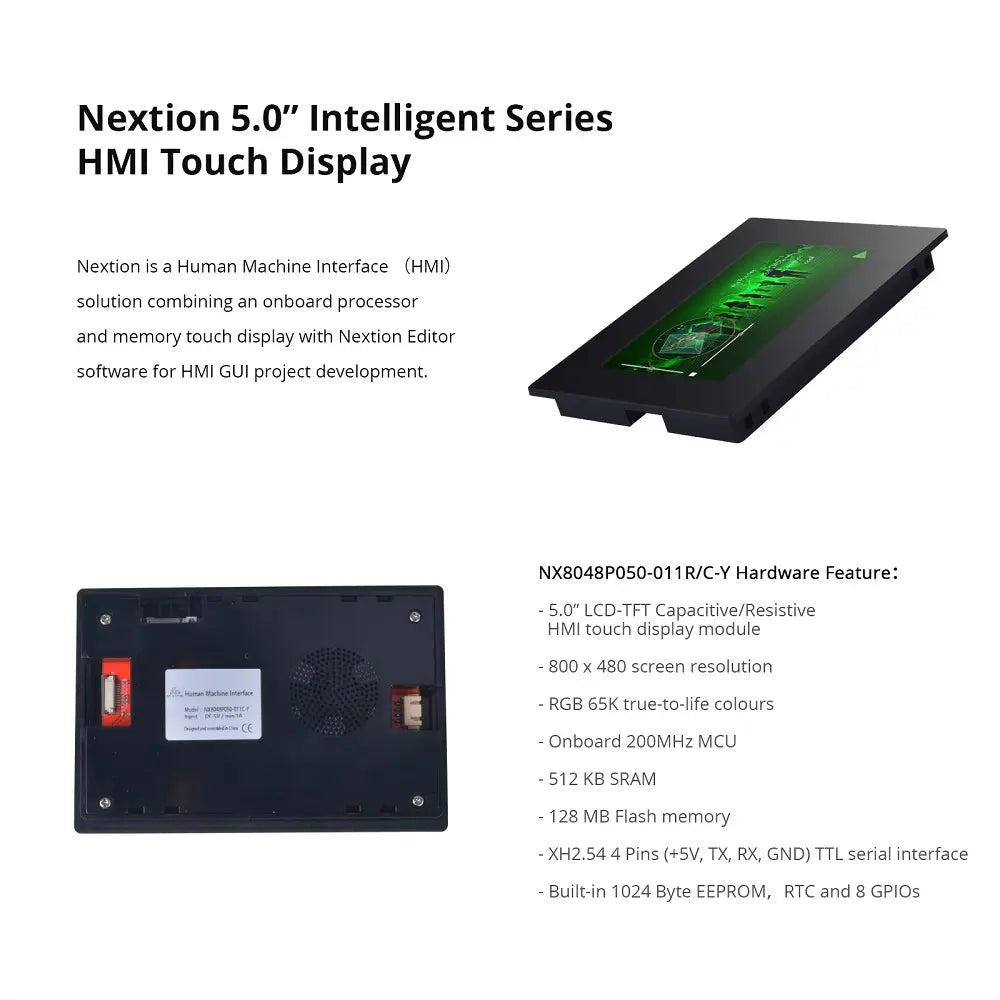

Nextion NX8048P050-011R-Y 5.0" HMI Touch Display - Intelligent Series TFT LCD (800x480) with Metal Enclosure, UART Interface, for Arduino/Raspberry Pi/Industrial Controls

🖥️ Display Specifications

• 5.0" TFT LCD with 800×480 HD resolution

• 65K RGB colors for vibrant, true-to-life visuals

• 300-nit brightness - clear visibility in all lighting

• Resistive touch - reliable operation with gloves/styluses

⚙️ Professional Features

• Pre-installed aluminum enclosure for protection

• Wide viewing angles (70°+ all directions)

• UART interface for easy microcontroller connection

• Operating temperature: -20°C to 70°C

🔌 Seamless Integration

• Works with:

  • Arduino (All variants)

  • Raspberry Pi

  • ESP32/8266

  • STM32

  • PLC systems

• Nextion Editor compatible for easy programming

🏭 Industrial Applications

• Factory automation control panels

• IoT device interfaces

• Commercial kiosks

• Medical equipment displays

• Automotive diagnostic tools

Technical Details:

• Model: NX8048P050-011R-Y

• SKU: 6920075776539

• Touch Type: 4-wire resistive

• Contrast Ratio: 500:1

• Power: DC 7-32V

• Certifications: CE/RoHS

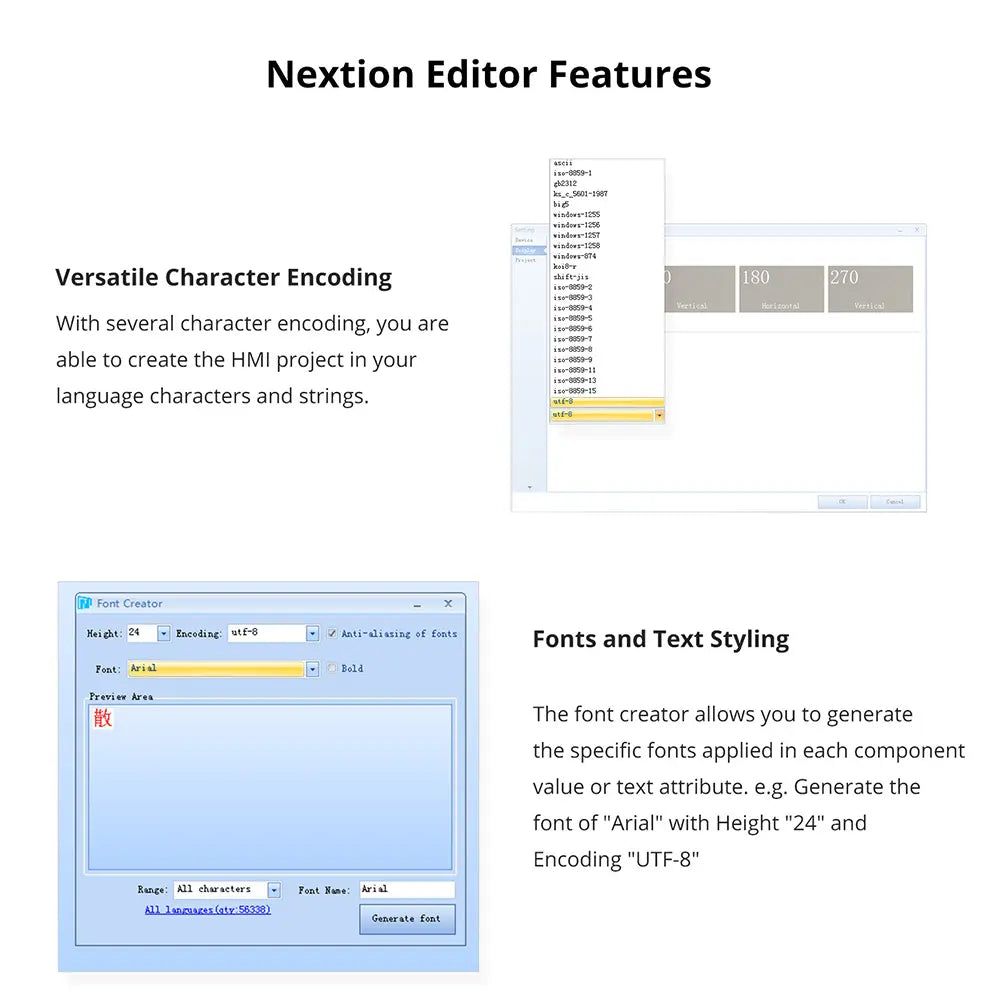

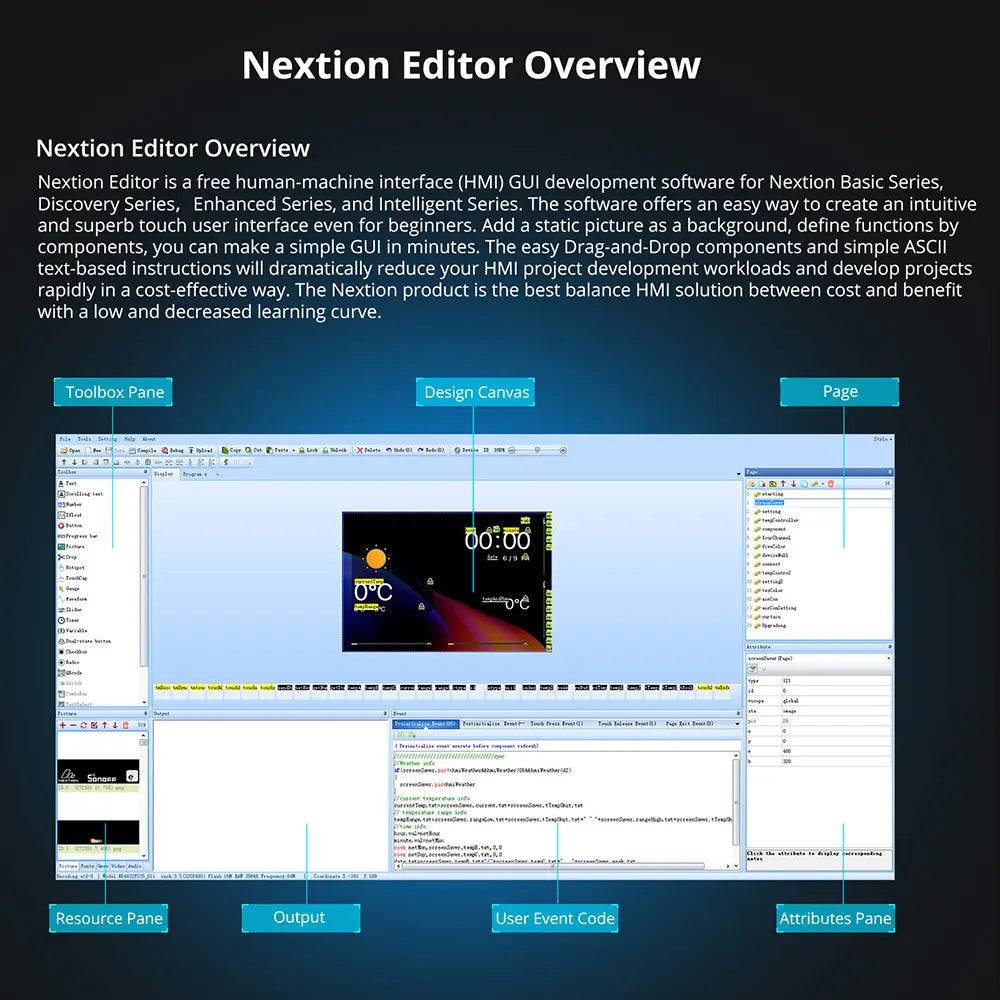

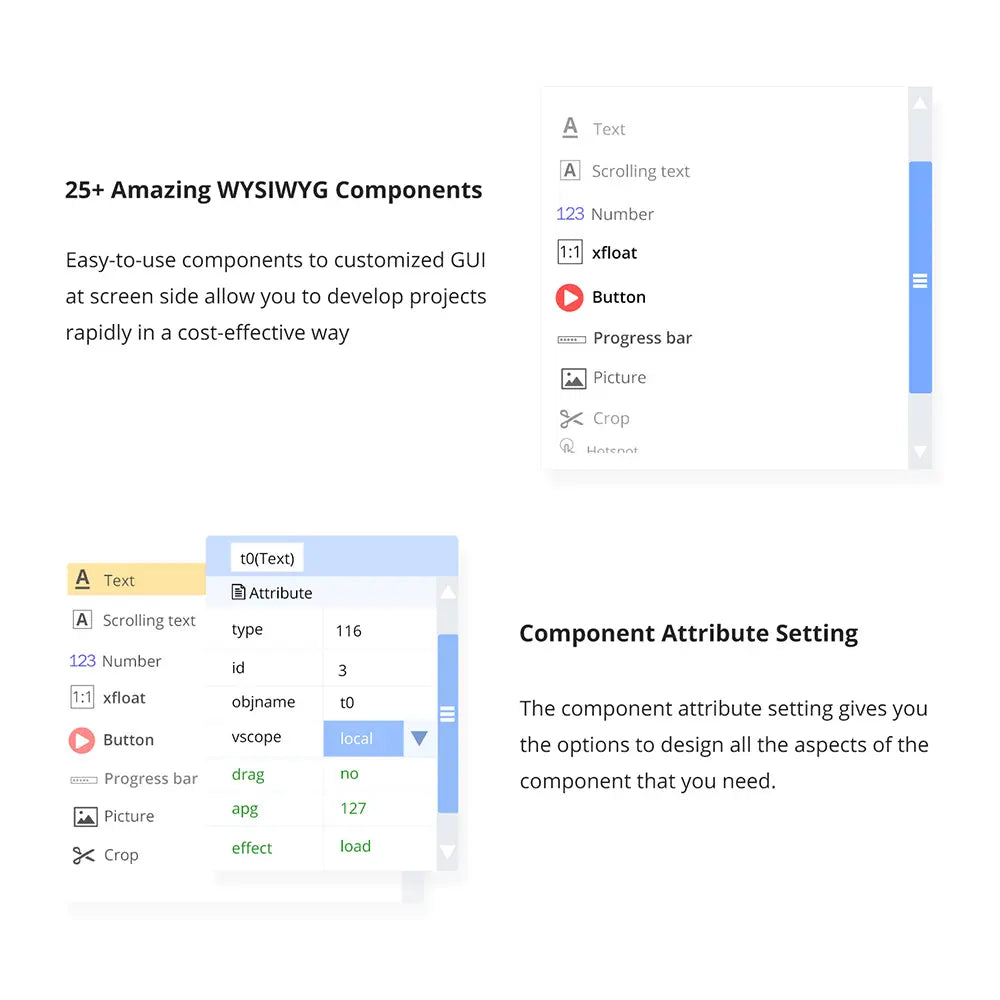

  Nextion Editor Overview Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.Nextion Editor Features Versatile Character Encoding With several character encoding, you are able to create the HMI project in your language characters and strings. Fonts and Text Styling The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”25+Amazing WYSIWYG Components Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way Component Attribute Setting The component attribute setting gives you the options to design all the aspects of the component that you need.Free Simulator Debug Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions. Nextion Operational Commands The operational commands allow users to program the HMI interactions by coding in Events windowsText-based Instruction Set Simple ASCll text based instructions will dramatically reduce your HMI project development workloads Support Simple Assignment Operators To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

  • NX8048P050-011R-Y Certification and Documents

    • – Datasheet
    • – Dimension
    • – Instruction Set
    • – Editor Guide
    • – LTA Announcement
    • – CE Certification
    • – ROHS Certification

    NX8048P050-011C-Y Certification and Documents

    • – Datasheet
    • – Dimension
    • – Instruction Set
    • – Editor Guide
    • – LTA Announcement
    • – CE Certification
    • – ROHS Certification

    Nextion Technical Support

    • – Nextion Community Forum
    • – Enhanced Support
