SONOFF ZBM5-1C-120W SwitchMan Zigbee Smart Wall Switch - 1-Gang, Works with Alexa/Google Home, No Neutral Required, 120W Max Load, White Touch Panel, Zigbee 3.0

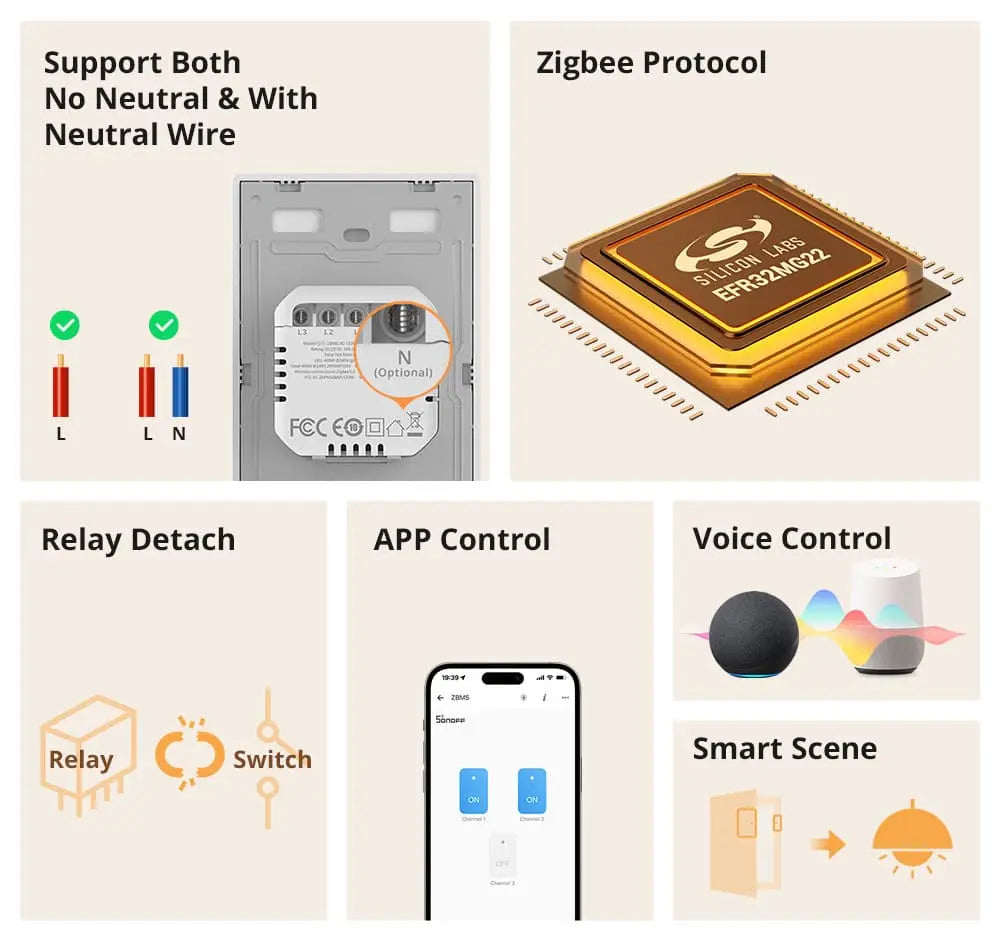

🔌 Dual Wiring Mode Flexibility

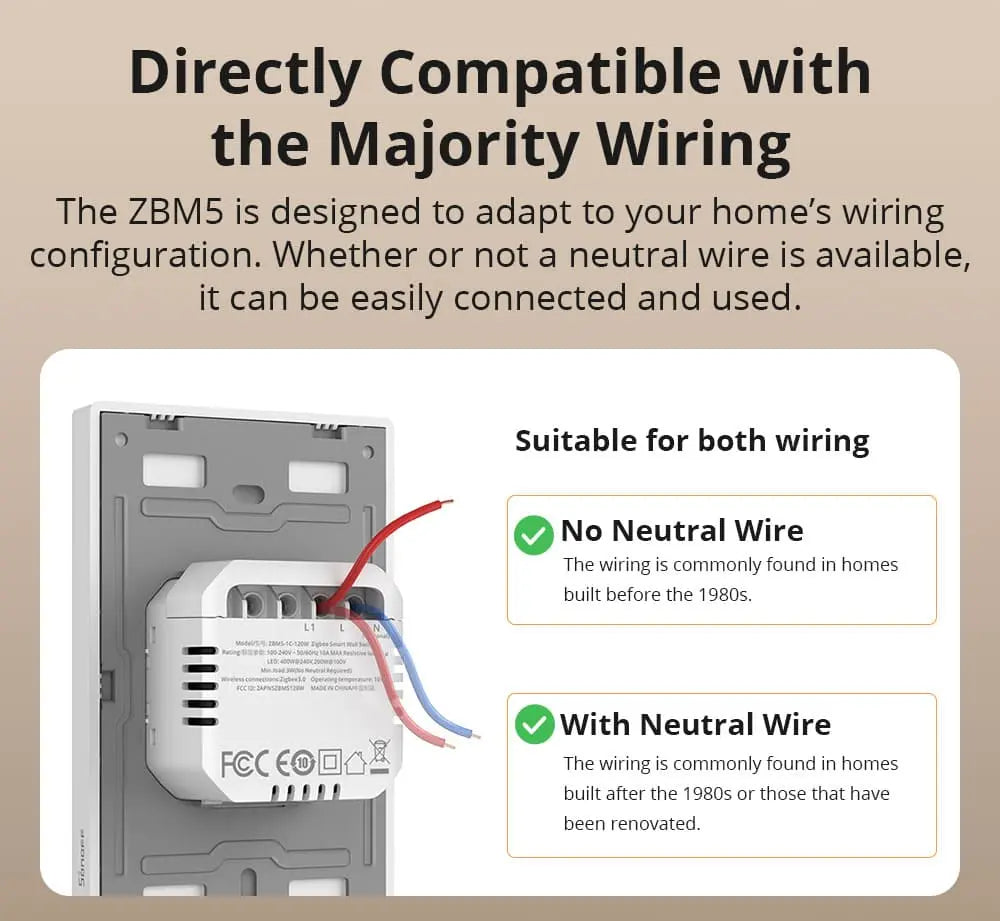

• No Neutral Required Mode (3W+ load minimum):

  • Works as Zigbee end device

  • Ideal for basic on/off control

  • Compatible with traditional bulbs

• Neutral Required Mode (enhanced functionality):

  • Acts as Zigbee router (extends network)

  • Supports smart lights via Detach Relay

  • Enables full smart bulb functionality

🌐 Complete Smart Home Integration

• Zigbee 3.0 protocol works with:

  • SONOFF Zigbee hubs

  • Amazon Echo (4th Gen+)

  • Samsung SmartThings

  • Home Assistant (via ZBDongle)

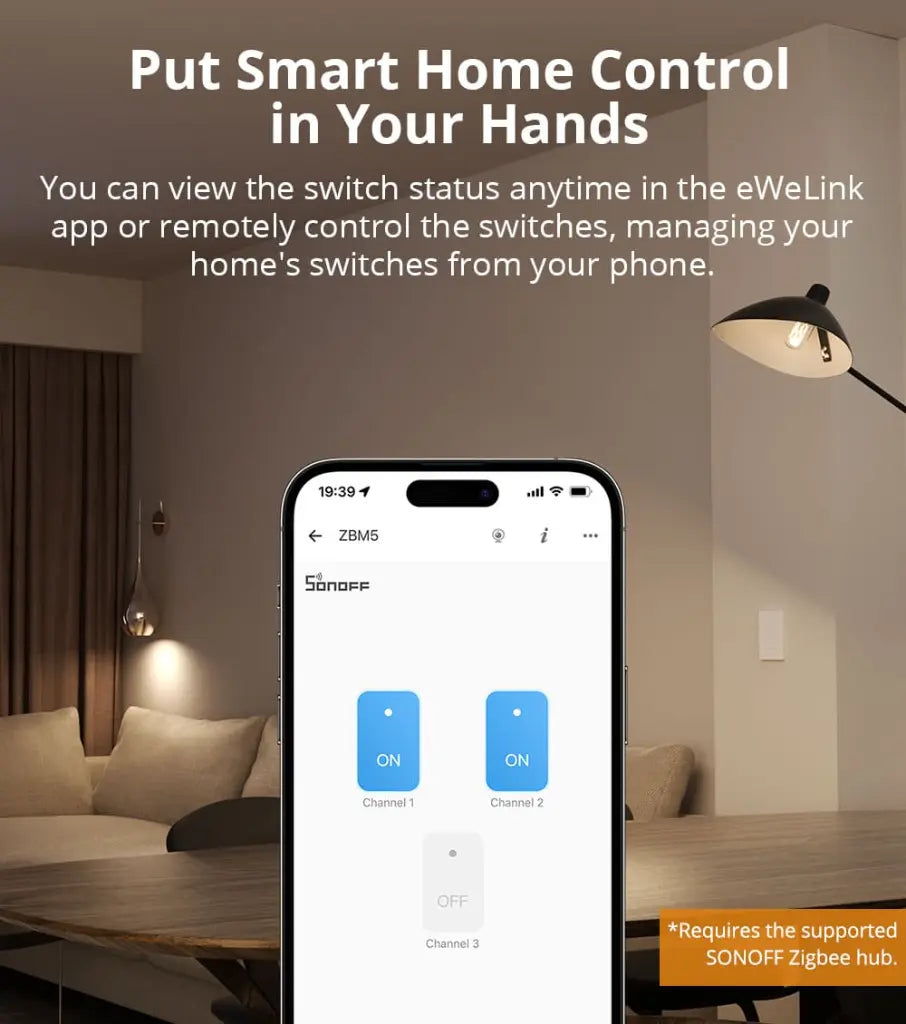

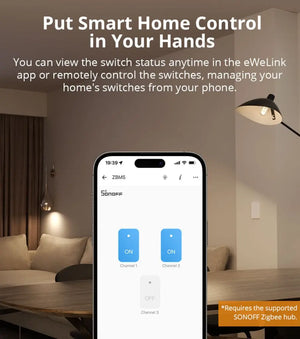

• eWeLink app control:

  • Remote access

  • Custom schedules

  • Scene automation

  • Usage history

💡 Smart Lighting Features

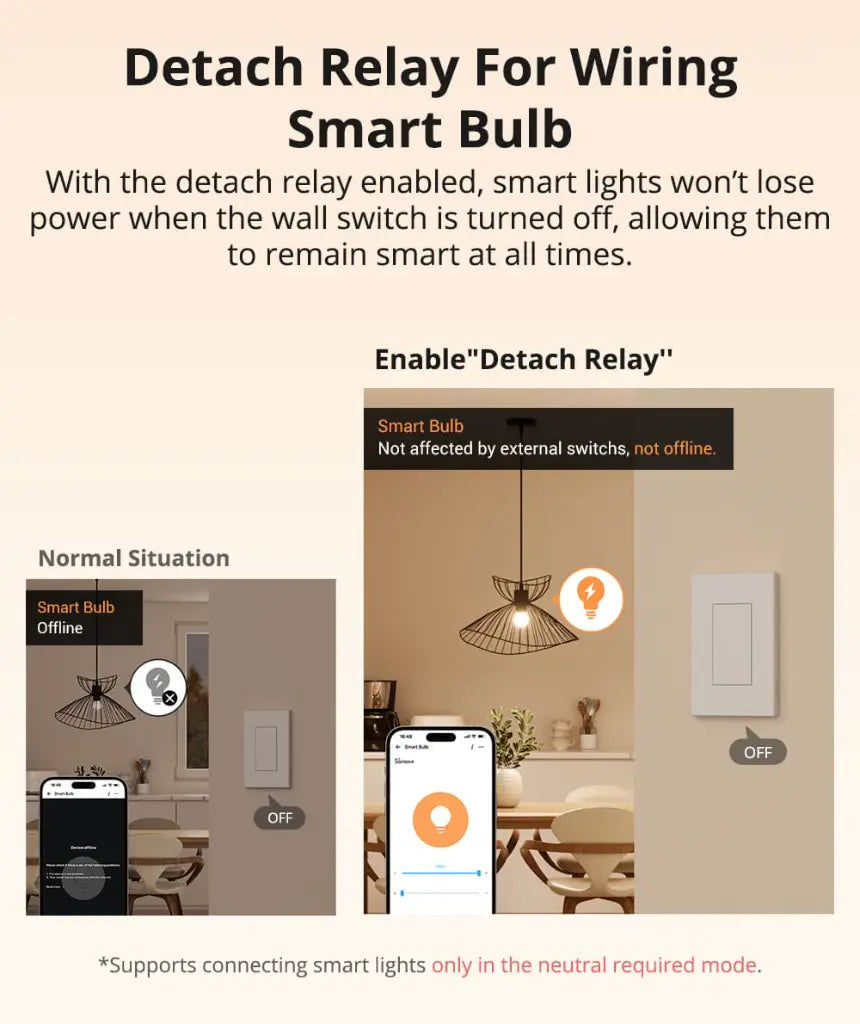

• Detach Relay Mode (neutral wire required):

  • Keeps smart bulbs powered when switched off

  • Maintains connectivity for voice/app control

  • Works with: Philips Hue, LIFX, etc.

• Standard Mode:

  • Controls traditional LED/incandescent bulbs

  • Minimum 3W load requirement

🛠️ Professional Installation Options

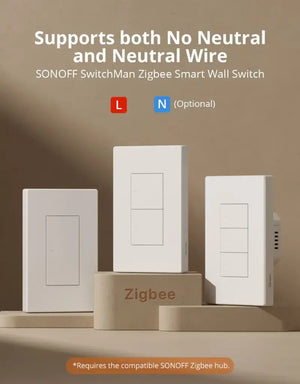

• 1/2/3 gang configurations available

• EU standard 86mm frame fits existing boxes

• Clear wiring diagrams included

• Child-safe design with flush buttons

Technical Specifications:

• Max Load: 120W per gang

• Voltage: 100-240V AC

• Wireless: Zigbee 3.0 (2.4GHz)

• Operating Temp: -20°C to 60°C

• Certifications: CE/RoHS/RF




  Overview

  The ZBM5 is a Zigbee protocol mechanical smart wall switch, offering flexible wiring options for single live or neutral wire connections based on your home's wiring, available in 1/2/3 gang. ZBM5 supports App remote control, detach relay mode, timers, smart scene, etc, it is your reliable assistant for a smart home. ZBM5 can be configured based on your home wiring setup, supporting two modes: no neutral required mode and neutral required mode. In neutral required mode, ZBM5 operates as a Zigbee router, enhancing the robustness and coverage of your Zigbee network, supporting smart lights, and can be used with the detach relay function in the eWeLink app. With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times. *Supports connecting smart lights only in the neutral required mode. In no neutral required mode, ZBM5 operates as a Zigbee end device. The external load must meet a minimum power requirement of 3W. It doesn't support smart lights, including but not limited to dimmable, color-changing, gradient, and lights with built-in controllers and LED strips. ZBM5 is compatible with Home Assistant using the ZBDongle via ZHA or Zigbee2MQTT integration, creating a smart home solution that works seamlessly with devices from various manufacturers.

  Documents

  • User Manual
